ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.
KEY PERFORMANCE FACTORS
Lighter weight
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More power

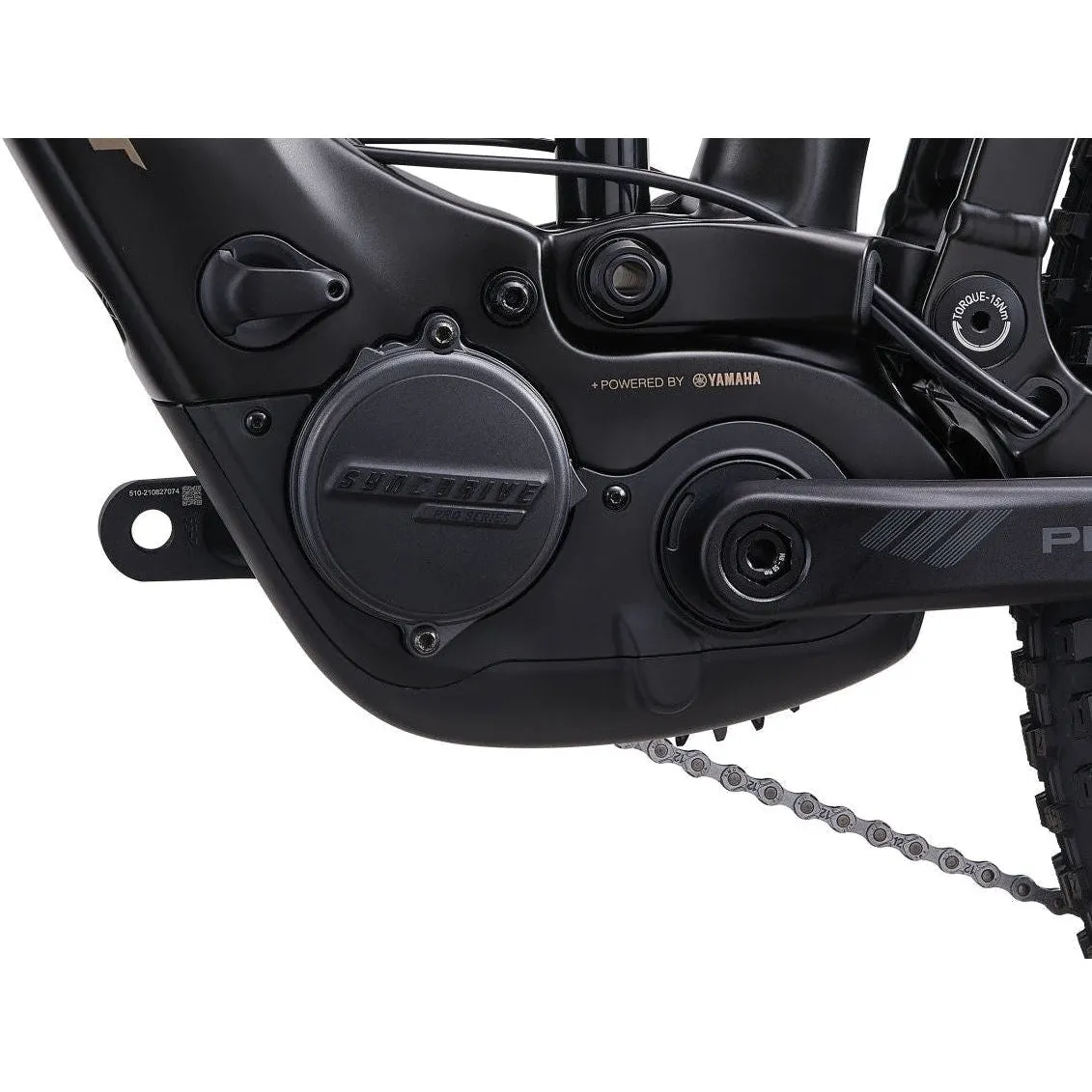

New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |

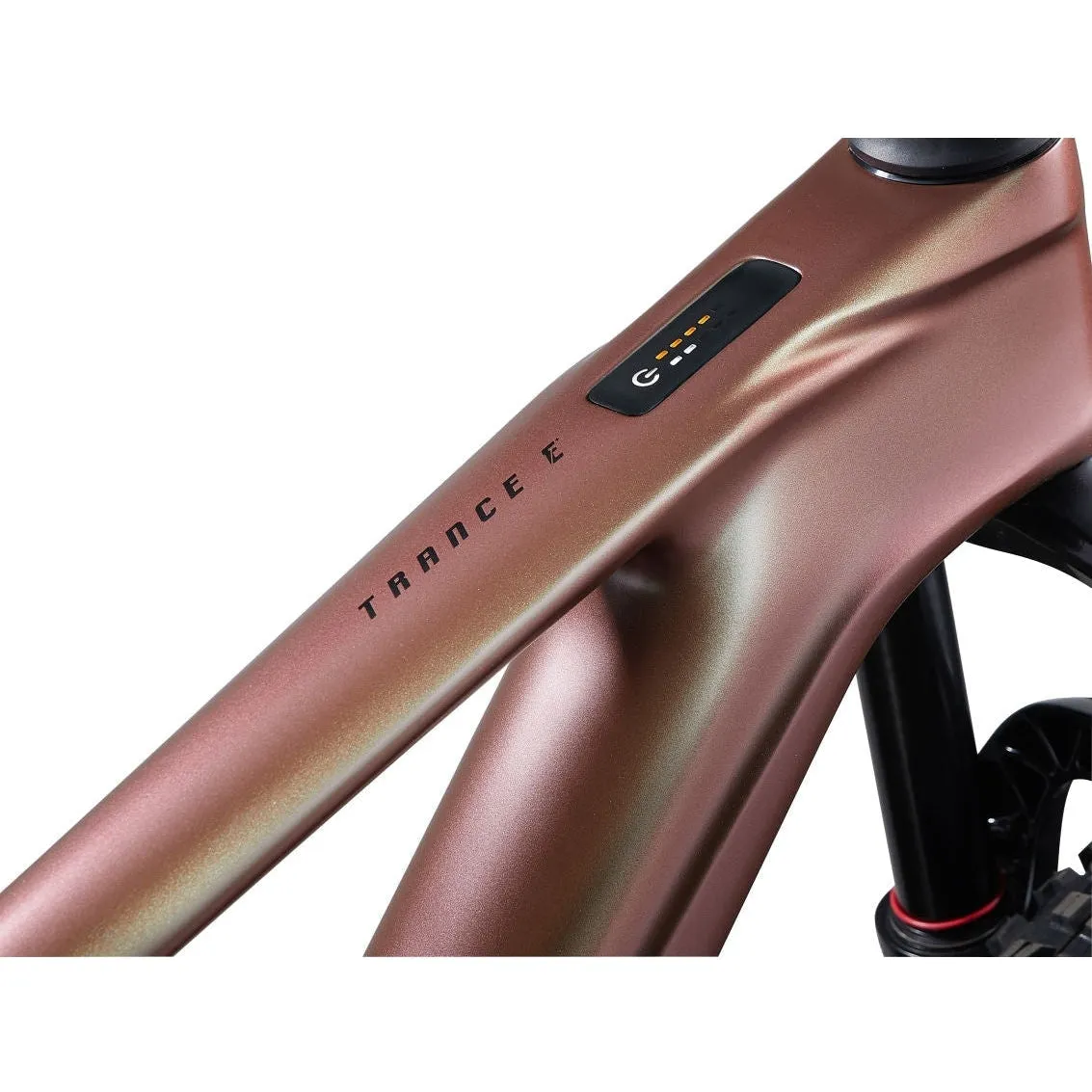

| Display | RideControl GO, frame integrated LED display ANT Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus range extender compatible |
| Charger | EnergyPak 4A smart charger compact |
| Sizes | S, M, L, XL |
| Colors | Messier/Panther |
| Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle |
| Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControl rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised |

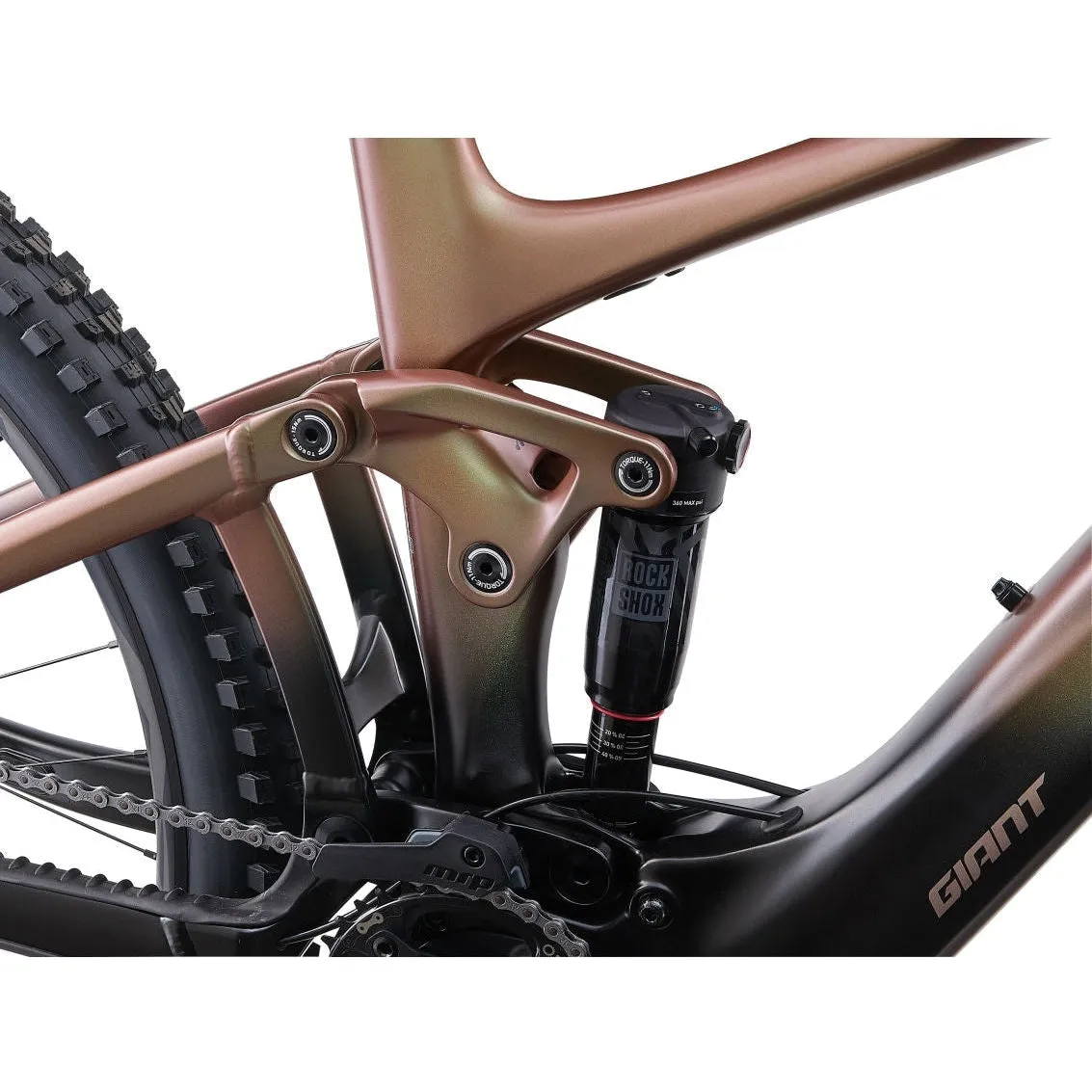

| Shock | Rock Shox Deluxe Select R, DebonAir, custom tuned |
| Handlebar | Giant Contact SL 35 Trail, 35 |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm |
| Seatpost | Giant Contact Switch dropper, remote |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano Deore |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore 12-speed |
| Brakes | Shimano BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm |
| Brake Levers | Shimano Deore, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm |
| Bottom Bracket | N/A |
| Rims | Giant AM 29, alloy 29"[F], 27.5" [R] |
| Hubs | [F] Giant Boost 20x110, Sealed Bearing [R] Giant Boost 12x148, Sealed Bearing, HG |
| Spokes | Sapim, e-bike optimised |
| Tires | Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional: - Giant Recon series e-bike lights available and direct connectable |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
