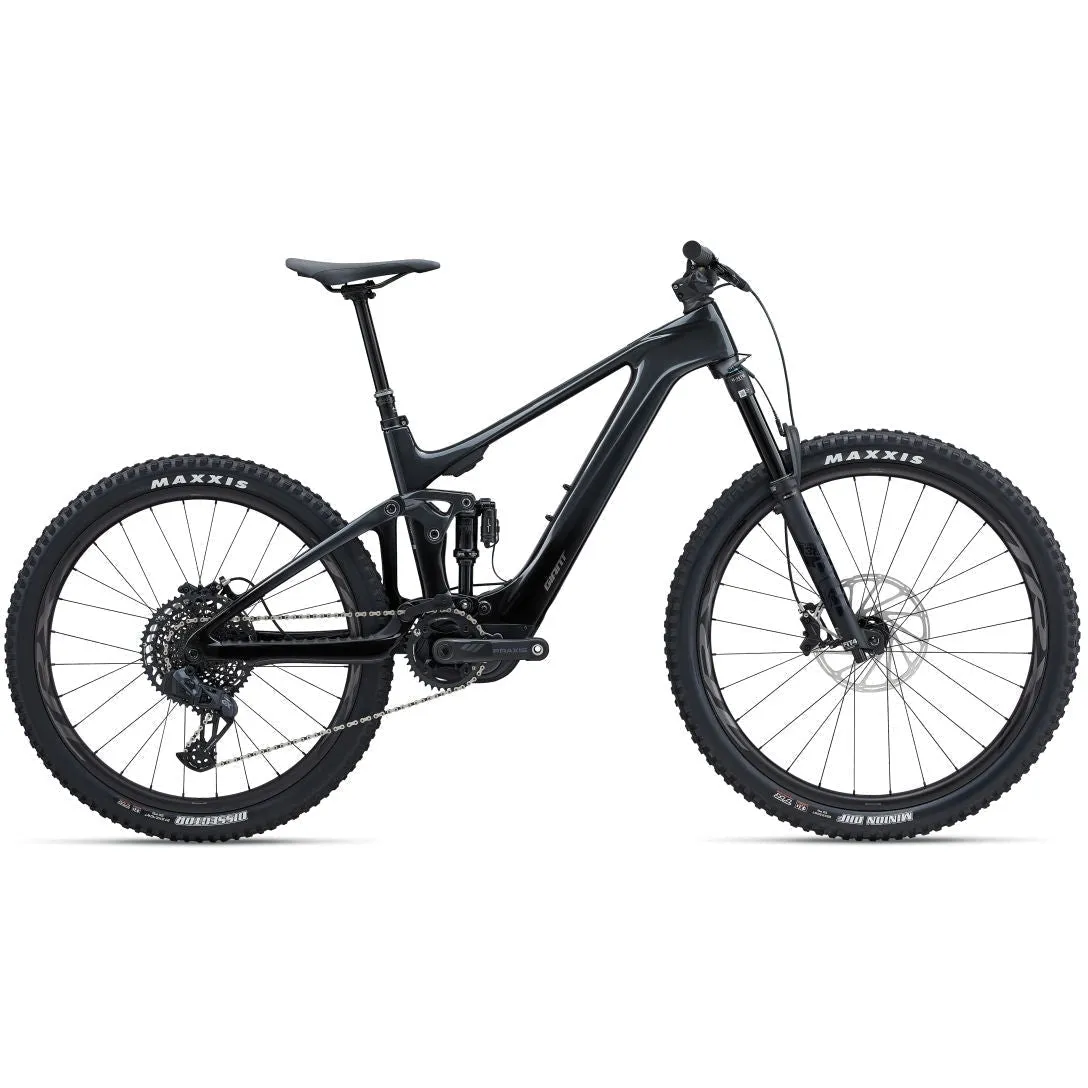

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.
KEY PERFORMANCE FACTORS
Lighter weight
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails. Riders can tune the motor from 20Nm to 85Nm of torque for each power mode using the RideControl App, this allows for maximised power or extended range
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display ANT Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus range extender compatible |
| Charger | EnergyPak 4A smart charger compact |
| Sizes | S, M, L, XL |
| Colors | Gunmetal Black/Black |
| Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle |
| Fork | Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated |
| Shock | Fox Float Performance Elite Live Valve, electronic suspension, e-bike integrated |
| Handlebar | Giant Contact SLR Integrated, composite, 35mm |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SLR Trail, integrated, 40/50mm Reach, 7/9 degree Sweep Adjust System |
| Seatpost | TranzX travel-adjustable dropper, remote |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | SRAM AXS Rocker Paddle, 1x12 |
| Front Derailleur | MRP 1X HD2 custom co-moulded chain guide |
| Rear Derailleur | SRAM GX Eagle AXS |
| Brakes | SRAM Code R, 4-piston hydraulic disc, [F] 220mm, [R] 200mm |
| Brake Levers | SRAM Code R |
| Cassette | SRAM XG-1275, 10-52T, 12-speed |
| Chain | SRAM GX Eagle |
| Crankset | Praxis Performance Carbon e-crank arms SRAM X-SYNC Eagle 36T chain ring S:160mm, M: 165mm, L:165mm, XL:170mm |
| Bottom Bracket | N/A |
| Rims | TRX 2 Hookless Clincher, 29" [F], 27.5" [R] |
| Hubs | [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim, e-bike optimised |
| Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional: - Giant Recon series e-bike lights available and direct connectable |
| Carrier | - |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
